9Sun Solar Announced the Launch of Its New PV Cable
發(fā)布于 2023年11月27日

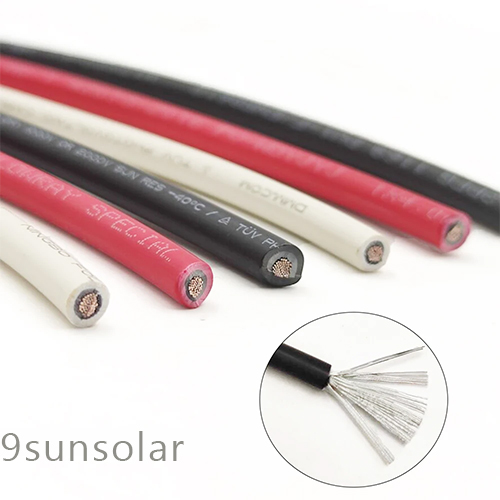

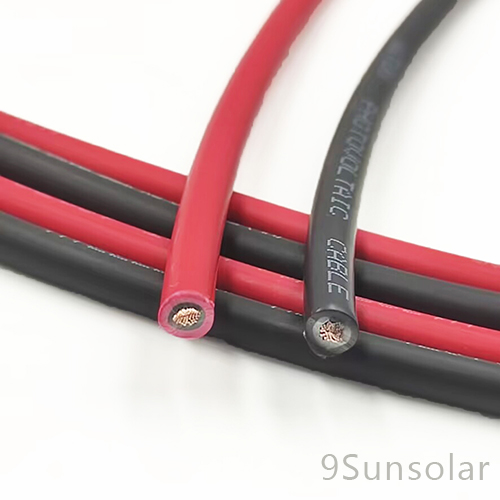

9Sun Solar today announced the launch of its new PV cable. Photovoltaic cable is mainly used in photovoltaic power stations, with high temperature, cold, oil, acid, and alkali resistance, anti-ultraviolet, flame-retardant environmental protection, long service life, etc
Specification
- Conductor
Fine wire strands of tinned copper wires, according to IEC 60228, Class 5
- Insulation
Halogen-free PE, electron beam cross-linked
- Outer Jacket
Halogen-free and flame-retardant PE, electron beam cross-linked resistance against water
- Temperature Range
Max temperature at conductor: -40℃ up to +120℃
Temperature range : -40℃ up to +90℃
- Electrical Characteristics
Nominal voltage: AC 600/1000V, DC 900/1500V
Mat.DC voltage: 1800V (conductor-conductor, non earthed system, circuit not under load)
Min. Surface resistance of sheath: 109?
Industry standards: IEC 62930:2017 / TUV 2pfg 1169 08.2007 / EN50618:2014 / CE
來源:
9Sun Solar
